Revel VLS OLED Oil Temperature GaugeRevel
Free shipping within the USA.

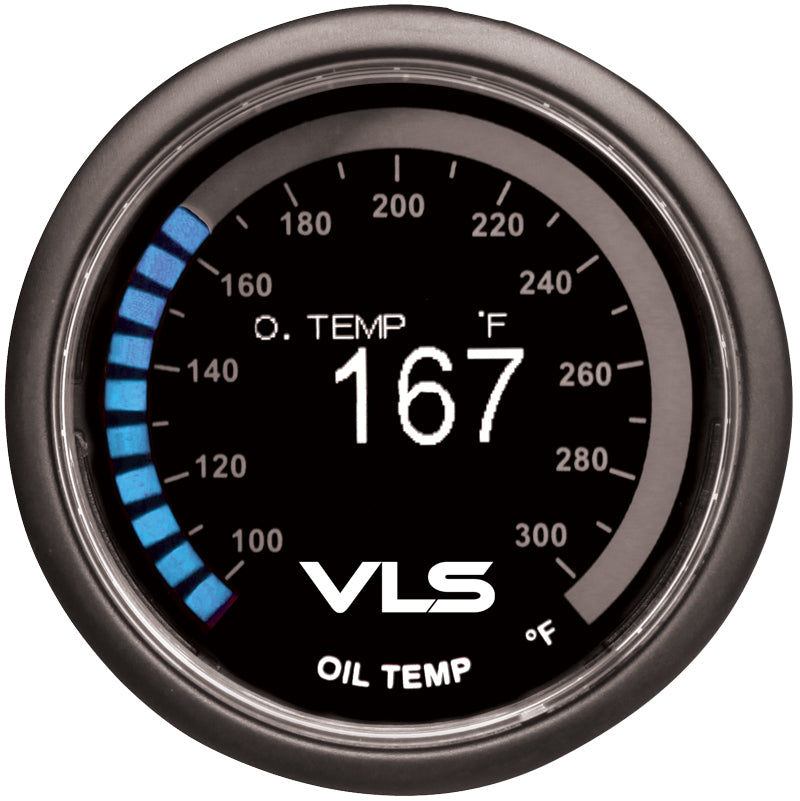

The Revel VLS Oil Temperature gauge monitors temperatures starting from 100 ºF all the way up to 300 ºF. The OLED screen allows for easy readings from any viewing angle, and a 30 LED outer ring for viewing at a quick glance. This kit is included with the water temperature sensor in 1/8 NPT thread pitch for easy installation.
The OLED Advantage
Maximum comfort is attained by the use of an OLED (Organic Light Emitting Diode) numerical display. When compared to a traditional LCD display, the OLED display provides sharper contrast resulting in a deeper black for a crisp, clear image that is easier to read at a glance. The technology also allows for undistorted viewing angles approaching 170 degrees. The OLED display also does not require a backlight to be clearly visible at night, which gives the slim profile of the gauge -- perfect for mounting in areas where space is an issue.

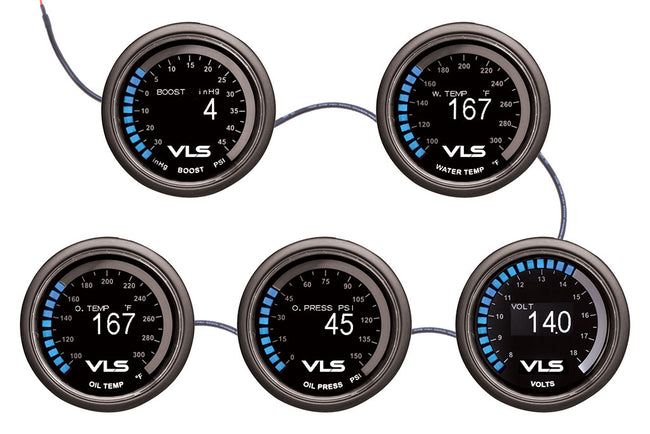

Daisy Chain Compatible
The Revel VLS Oil Temperature gauge is daisy chain compatible with other VLS gauges. This requires only one source of power for the first gauge in the series and utilizing the included daisy chain cable to power other gauges. This allows for a clean installation that avoids having many cables connected to a power source.
*VLS gauges are daisy chain compatible only with VLS OLED gauges.
- 52mm diameter gauge (2 1/16 in.)
- 100 ºF to 300 ºF reading
- Digital OLED display
- 30 LED outer ring
- Daisy chain compatible

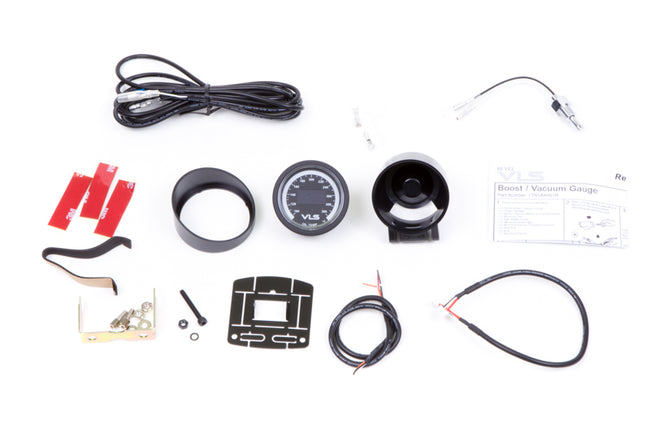

- Oil temp sensor included
(1/8 NPT thread pitch)
- Mounting kit included
