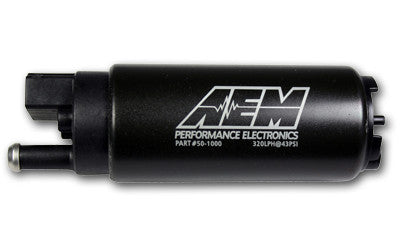

AEM 320L In Tank Fuel Pump Kit (Gasoline)

  • Sale
  • Regular price $99.99


AEM’s 320lph High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.

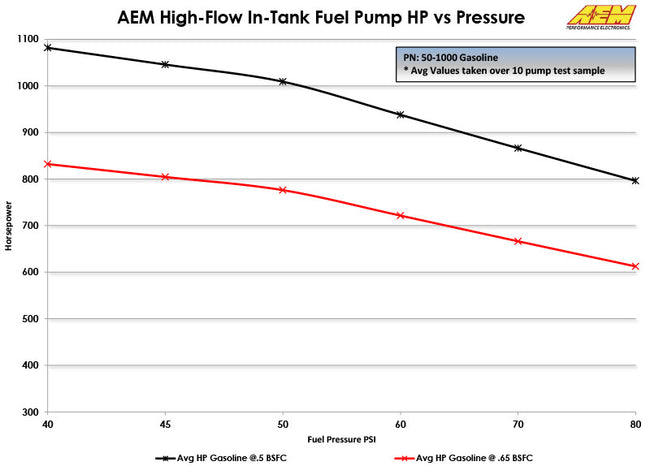

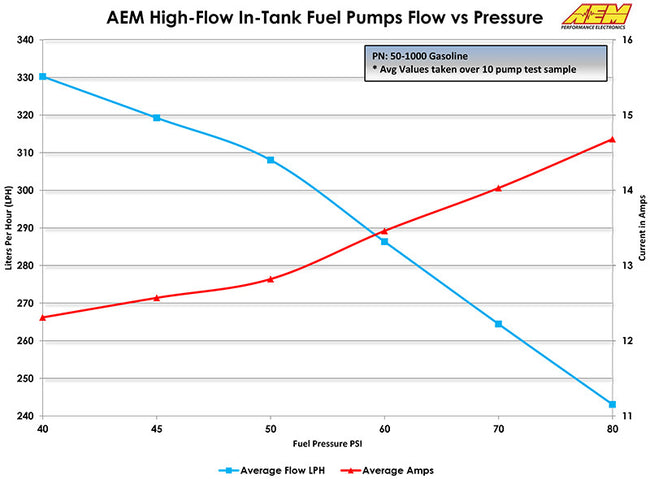

The AEM 320lph High Flow In-Tank Fuel Pump (PN 50-1000) flows 320 lph (84 gph) at 43 PSI and is capable of supporting over 1,000 HP at 43 PSI.* Please see the flow curves and current draw vs. fuel pressure graphs on the specs tab for more information.

This fuel pump is designed for in-tank mounting for use with gasoline and features a compact 38mm diameter that fits most applications. It has an offset inlet design that eases installations and includes a wiring harness, pre filter, internal fuel hose and clamps, end cap and rubber buffer sleeve. Every pump is tested to flow 320 lph at 43 PSI before it is packaged for sale.

Designed for high output naturally aspirated and forced induction EFI vehicles

In tank design

Tested to flow 320 lph @ 43 PSI

39mm diameter fits most applications

Offset inlet design eases installation

Each pump individually tested

For gasoline vehicles

Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead

    TECHNICAL SPECS
    Weight: 12.5oz (354grams)

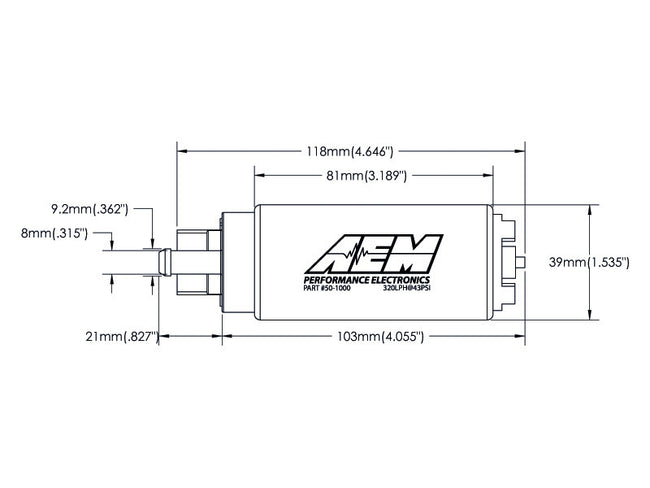

    Outside Diameter: 39mm OD
    External Materials: Black plated steel with laser etching
    Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
    Outlet Fitting: 8 mm hose clamp. Offset
    PRV Activation: 80 PSI
    Impeller Design: Single Scroll Hard Anodized Aluminum Turbine

    VOLTAGE SPECS
    Connector Terminal: 6 mm Spade (pos/neg)
    Min Voltage Input: 6 volts
    Max Voltage Input: 18 volts
    Current Draw (40 psi): 12 amps (13.5v)
    Current Draw (80 psi): 15 amps (13.5v)
    Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX
